Model Whirlpool 1653^0A GAS RANGE – Common Parts & Diagrams
02 - BACKGUARD
04 - BURNER

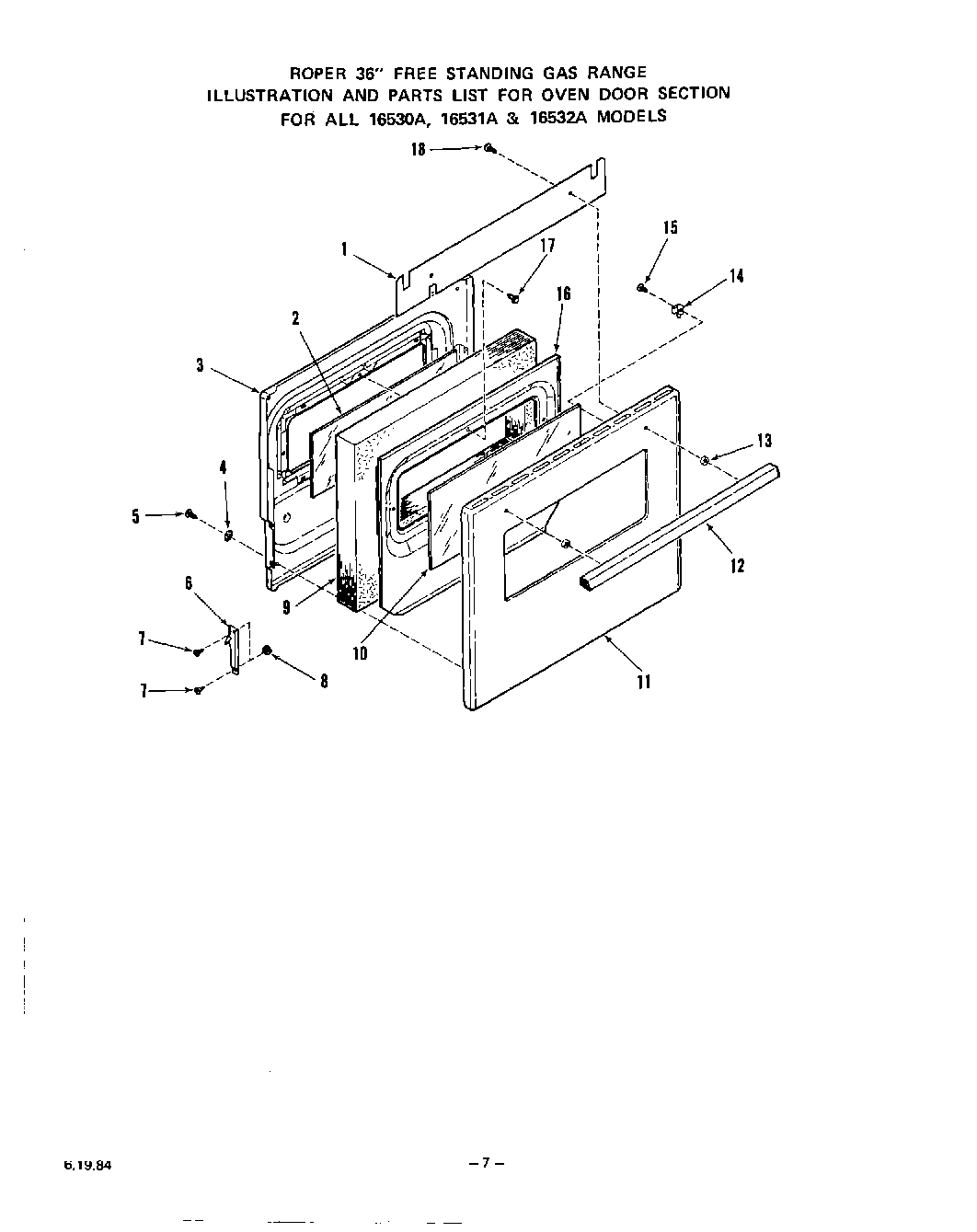

06 - OVEN DOOR

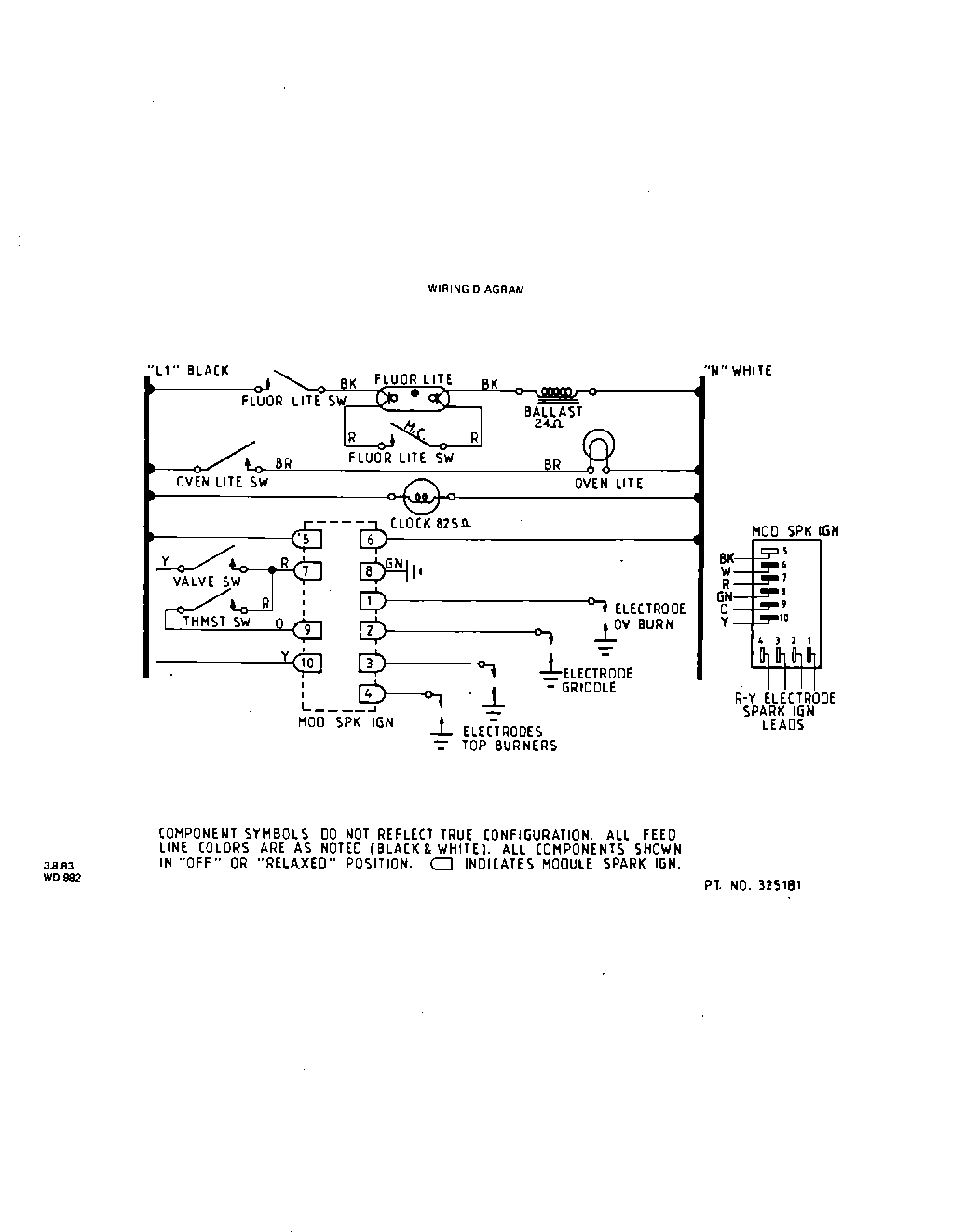

07 - WIRING DIAGRAM

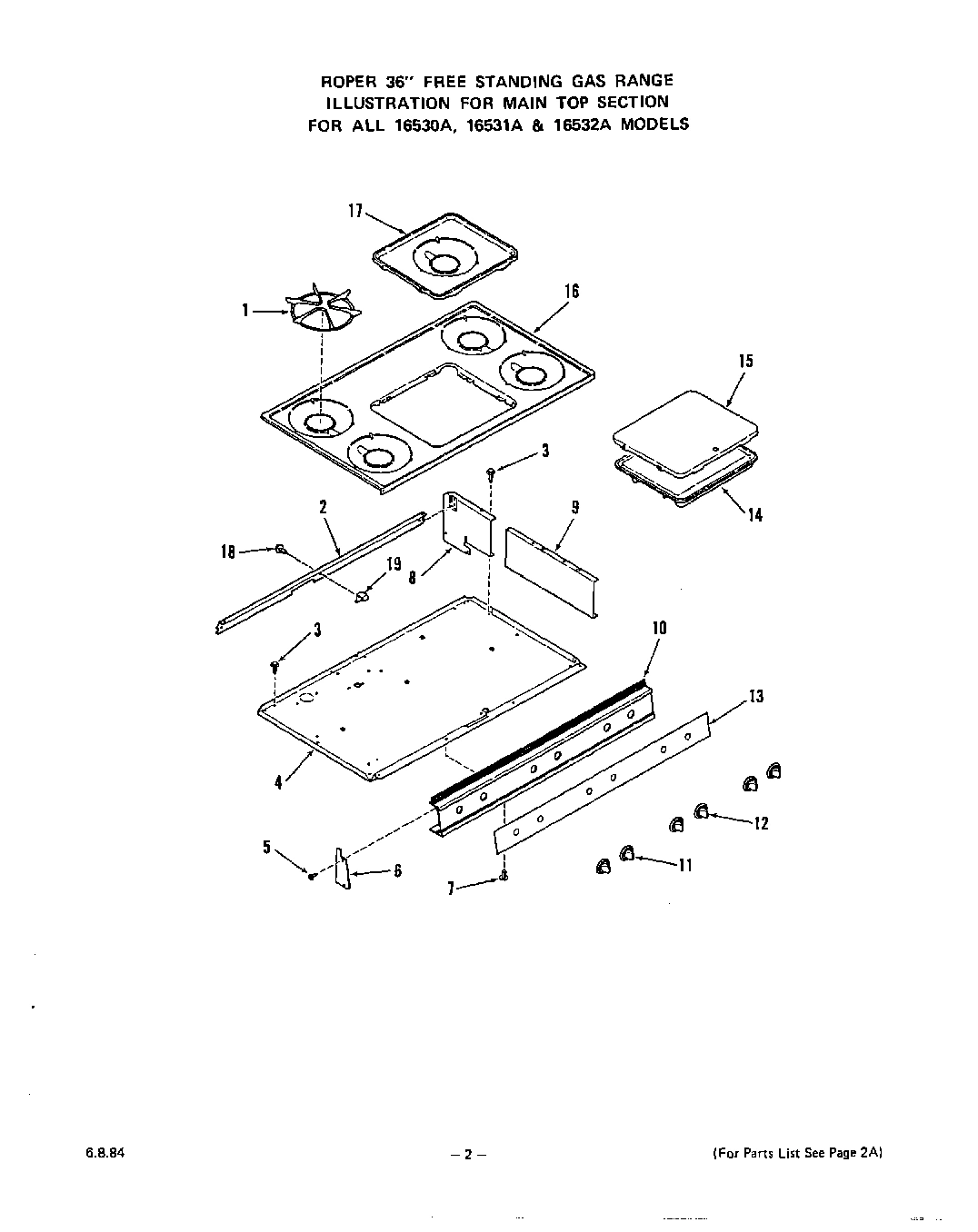

03 - MAIN TOP

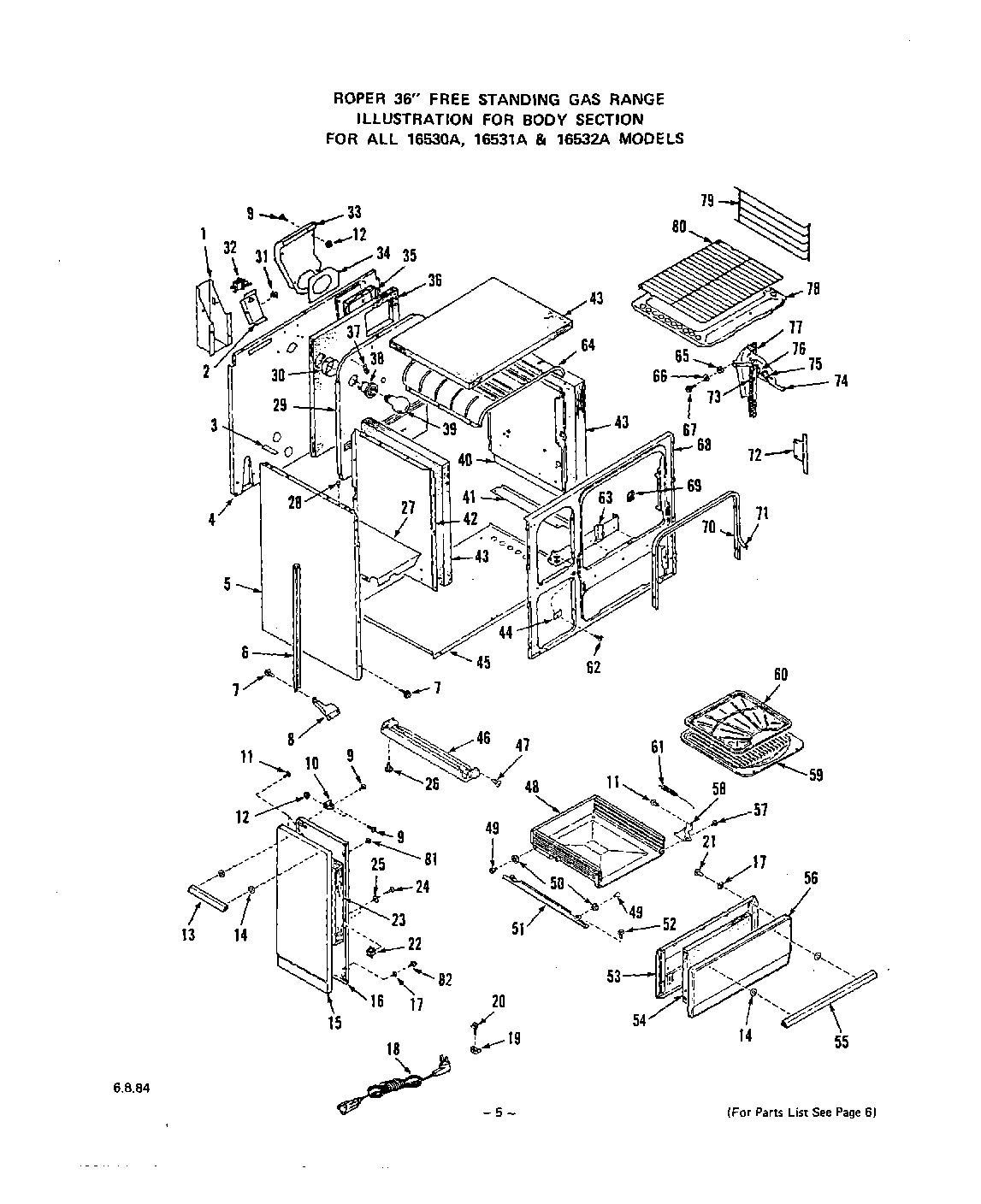

05 - BODY
Common parts from model Whirlpool 1653^0A GAS RANGE
1
Rear Top Burner-Lt. or Rt. (Inc`s. 19 & 20) WPL 325124 Contact Us For Availability
1
Heat Deflector WPL 303791 Contact Us For Availability
1
Top Grate (5 Req) WPL 316786 Contact Us For Availability
1
Wire Cover WPL 236241 Contact Us For Availability
2
Support-Backguard (Lt. or Rt.) WPL 322158 Contact Us For Availability
2
Pressure Regulator WPL 324529 Contact Us For Availability
2
Oven Door Glass-Inner WPL 299921 Contact Us For Availability
2
Support-Rear Main Top (All 16531A & 2A Models WPL 327906 Contact Us For Availability
2
Wire Cover Front WPL 277961 Contact Us For Availability
3
End Trim- Top Lamp Glass (Lt. or Rt.) WPL 299705 Contact Us For Availability
3
Lining-Oven Door WPL 303786 Contact Us For Availability
3
Spacer (2 Req) WPL 303513 Contact Us For Availability
4
Tubular Clip (4 Req.) WPL 293577 Contact Us For Availability
4
Tubing 3/8``-Oven Therm. to Oven Cont. Valve WPL 295037 Contact Us For Availability
4
Burner Box Bottom WPL 325157 Contact Us For Availability
4
Main Back WPL 309928 Contact Us For Availability
5
Screw 6-32x3/8`` WPL 295268 Contact Us For Availability
5
Body Side -Lt. or Rt. (White) WPL 325132 Contact Us For Availability
5
Body Side -Lt. or Rt. (Coffee) WPL 325133 Contact Us For Availability
5
Body Side -Lt. or Rt. (Avocado) WPL 325134 Contact Us For Availability
5
Body Side -Lt. or Rt. (Golden Wheat) WPL 325135 Contact Us For Availability
5
Body Side -Lt. or Rt. (Almond) WPL 325136 Contact Us For Availability
6
Fluorescent Lamp (15W-18``) WPL 77926 Contact Us For Availability
6
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
6
Hinge Arm Guide (Right) WPL 325201 Contact Us For Availability
6
Hinge Arm Guide (Left) WPL 325203 Contact Us For Availability
6
End Cap-Manifold Panel (Right) WPL 325116 Contact Us For Availability
6
End Cap-Manifold Panel (Left) WPL 325117 Contact Us For Availability
6
Stiffener - Body Side (Lt. or Rt.) WPL 309986 Contact Us For Availability
7
Ballast WPL 98186 Contact Us For Availability
7
Screw 10-32x17/32`` WPL 295849 Contact Us For Availability
7
Shoulder Rivet WPL 97709 Contact Us For Availability
7
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
8
Wire Cover-Backguard WPL 325021 Contact Us For Availability
8
Keps Nut 10-32 WPL 285726 Contact Us For Availability
8
Bracket-Control Valve WPL 325148 Contact Us For Availability
8
Extension-Burner Box Bottom (Left) WPL 325119 Contact Us For Availability
8
Extension-Burner Box Bottom (Right) WPL 325121 Contact Us For Availability
8
Lower Support - Body Side (Right) WPL 293420 Contact Us For Availability
8
Lower Support - Body Side (Left) WPL 293421 Contact Us For Availability
9
Switch-Top & Oven Light WPL 307411 Contact Us For Availability
9
Screw 10-32 x 2`` WPL 323296 Contact Us For Availability
9
Insulation WPL 303797 Contact Us For Availability
9
Baffle-Burner Box Bottom (Right) WPL 325359 Contact Us For Availability
9
Baffle-Burner Box Bottom (Left) WPL 325681 Contact Us For Availability
9
Screw 10-24x1/2`` WPL 71208 Contact Us For Availability
10
Mounting Bracket-Clock WPL 293560 Contact Us For Availability
10
Oven Control Valve WPL 325079 Contact Us For Availability
10
Oven Door Glass-Outer WPL 308460 Contact Us For Availability
10
Manifold Panel WPL 325122 Contact Us For Availability
10
Hinge-Compartment Door (2 Req) WPL 325205 Contact Us For Availability
11
Clock w/4 Hr.Timer WPL 322804 Contact Us For Availability
11
Front Panel-Oven Door (White 1653W0A) WPL 309875 Contact Us For Availability
11
Front Panel-Oven Door (Coffee 1653C0A) WPL 309876 Contact Us For Availability
11
Front Panel-Oven Door (Avocado 1653A0A) WPL 309877 Contact Us For Availability
11
Front Panel-Oven Door (Golden Wheat 1653H0A) WPL 309878 Contact Us For Availability
11
Front Panel-Oven Door (Almond 1653L0A) WPL 309879 Contact Us For Availability
11
Front Panel-Oven Door (White 1653W1A & 2A) WPL 325247 Contact Us For Availability
11
Front Panel-Oven Door (Coffee 1653C1A & 2A) WPL 325248 Contact Us For Availability
11
Front Panel-Oven Door (Avocado 1653A1A & 2A) WPL 325249 Contact Us For Availability
11
Front Panel-Oven Door (Golden Wheat 1653H1A & WPL 325250 Contact Us For Availability
11
Front Panel-Oven Door (Almond 1653L1A & 2A) WPL 325251 Contact Us For Availability
11
Screw 10 - 32 x 1/2`` WPL 102430 Contact Us For Availability
11
Knob-Gas Valve (5 Req) WPL 325540 Contact Us For Availability
12
Knob-Clock WPL 294810 Contact Us For Availability
12
Compression Ball Sleeve 3/16`` WPL 65711 Contact Us For Availability
12
Knob-Oven Thermostat WPL 325541 Contact Us For Availability
12
Keps Nut 10-24 WPL 74056 Contact Us For Availability
13
Bottom Front-Backguard WPL 325005 Contact Us For Availability
13
Orifice Cup Only WPL 318485 Contact Us For Availability
13
Trim-Manifold Panel WPL 326128 Contact Us For Availability
13
Handle-Compartment Door WPL 309871 Contact Us For Availability
14
Screw 6-32 x 3/8`` WPL 303820 Contact Us For Availability
14
Compression Nut 3/16`` WPL 65712 Contact Us For Availability
14
Spacer WPL 107158 Contact Us For Availability
14
Retainer-Door Glass (2 Req) WPL 299592 Contact Us For Availability
14
Griddle Plate WPL 321745 Contact Us For Availability
15
Scoop-Flue Deflector WPL 298023 Contact Us For Availability
15
Electrode-Spark Igniter (Right) WPL 312455 Contact Us For Availability
15
Electrode-Spark Igniter (Left) WPL 312598 Contact Us For Availability
15
Electrode-Spark Igniter (Griddle) WPL 313589 Contact Us For Availability
15
Griddle Cover (White 1653W0A) WPL 322220 Contact Us For Availability
15
Griddle Cover (Coffee 1653C0A) WPL 322221 Contact Us For Availability
15
Griddle Cover (Avocado 1653A0A) WPL 322222 Contact Us For Availability
15
Griddle Cover (Golden Wheat 1653H0A) WPL 322223 Contact Us For Availability
15
Griddle Cover (Almond 1653L0A) WPL 322224 Contact Us For Availability
15
Griddle Cover (White 1653W1A & 2A) WPL 327867 Contact Us For Availability
15
Griddle Cover (Coffee 1653C1A & 2A) WPL 327868 Contact Us For Availability
15
Griddle Cover (Avocado 1653A1A & 2A) WPL 327869 Contact Us For Availability
15
Griddle Cover (Golden Wheat 1653H1A & 2A) WPL 327870 Contact Us For Availability
15
Griddle Cover (Almond 1653L1A & 2A) WPL 327871 Contact Us For Availability
15
Front Panel-Compartment Door (White 1653W0A) WPL 100313 Contact Us For Availability
15
Front Panel-Compartment Door (Coffee 1653C0A) WPL 309893 Contact Us For Availability
15
Front Panel-Compartment Door (Avocado 1653A0A WPL 309894 Contact Us For Availability
15
Front Panel-Compartment Door (Golden Wheat 16 WPL 309895 Contact Us For Availability
15
Front Panel-Compartment Door (Almond 1653L0A) WPL 309896 Contact Us For Availability
15
Front Panel-Compartment Door (White 1653W1A & WPL 328516 Contact Us For Availability
15
Front Panel-Compartment Door (Coffee 1653C1A WPL 328517 Contact Us For Availability
15
Front Panel-Compartment Door (Avocado 1653A1A WPL 328518 Contact Us For Availability
15
Front Panel-Compartment Door (Golden Wheat 16 WPL 328519 Contact Us For Availability
15
Front Panel-Compartment Door (Almond 1653L1A WPL 328520 Contact Us For Availability
16
Top Lamp Glass WPL 325038 Contact Us For Availability
16
Front Top Burner-Lt. or Rt. (Inc`s. 19 & 20) WPL 325123 Contact Us For Availability
16
Retainer-Oven Door Insulation WPL 303796 Contact Us For Availability
16
Main Top (White) WPL 324888 Contact Us For Availability
16
Main Top (Coffee) WPL 324889 Contact Us For Availability
16
Main Top (Avocado) WPL 324890 Contact Us For Availability
16
Main Top (Golden Wheat) WPL 324891 Contact Us For Availability
16
Main Top (Almond) WPL 324892 Contact Us For Availability
16
Lining-Compartment Door (All 16530A Models) WPL 292238 Contact Us For Availability
16
Lining-Compartment Door (All 1 WPL 327874 Contact Us For Availability
17
Frame-Backguard WPL 324996 Contact Us For Availability
17
Bracket-Spark Igniter (3 Req) WPL 312453 Contact Us For Availability
17
WPL 21067 WPL 21067 Contact Us For Availability
17
Screw 10-32 x 17/32`` WPL 104520 Contact Us For Availability
17
Aeration Pan-Griddle (White) WPL 325413 Contact Us For Availability
17
Aeration Pan-Griddle (Coffee) WPL 325414 Contact Us For Availability
17
Aeration Pan-Griddle (Avocado) WPL 325415 Contact Us For Availability
17
Aeration Pan-Griddle ( WPL 325416 Contact Us For Availability
17
WPL 325417 WPL 325417 Contact Us For Availability
18
Bracket-Fluorescent Lamp (Right) WPL 324746 Contact Us For Availability
18
Bracket-Fluorescent Lamp (Left) WPL 325007 Contact Us For Availability
18
Bracket-Griddle Burner Pilot WPL 325115 Contact Us For Availability
18
Backguard WPL 325182 Contact Us For Availability
18
Module WPL 325183 Contact Us For Availability
18
Gas Valve Switches WPL 325184 Contact Us For Availability
18
Disconnect WPL 325654 Contact Us For Availability
18
WPL 327320 WPL 327320 Contact Us For Availability
18
WPL 235822 WPL 235822 Contact Us For Availability
19
Holder-Fluorescent Lamp (Right) WPL 325185 Contact Us For Availability
19
Holder-Fluorescent Lamp (Left) WPL 325655 Contact Us For Availability
19
Adjustment Screw-Air Shutter WPL 301911 Contact Us For Availability
19
WPL 327872 WPL 327872 Contact Us For Availability
19
WPL 106767 WPL 106767 Contact Us For Availability
20
Screw 6-32x1/4`` WPL 293121 Contact Us For Availability
20
Air Shutter WPL 301910 Contact Us For Availability
20
WPL 295850 WPL 295850 Contact Us For Availability
21
Support-Top Burner WPL 325111 Contact Us For Availability
22
Gasket WPL 313563 Contact Us For Availability
22
WPL 88465 WPL 88465 Contact Us For Availability
23
WPL 325710 WPL 325710 Contact Us For Availability
24
WPL 300000 WPL 300000 Contact Us For Availability
24
Electrode-Spark Igniter WPL 325080 Contact Us For Availability
25
Bracket-Oven Pilot WPL 325077 Contact Us For Availability
25
WPL 25741 WPL 25741 Contact Us For Availability
26
Pilot w/Orifice Cup Only WPL 318486 Contact Us For Availability
26
WPL 69065 WPL 69065 Contact Us For Availability
27
Tubing 3/8`` w/Orifice WPL 327308 Contact Us For Availability
27
WPL 325246 WPL 325246 Contact Us For Availability
28
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
28
WPL 301769 WPL 301769 Contact Us For Availability
29
Air Shutter WPL 323455 Contact Us For Availability
29
WPL 325076 WPL 325076 Contact Us For Availability
30
Oven Burner WPL 292938 Contact Us For Availability
30
WPL 233361 WPL 233361 Contact Us For Availability
31
Support-Oven Burner WPL 100985 Contact Us For Availability
31
WPL 70588 WPL 70588 Contact Us For Availability
32
Mounting Screw 1/4-20 (5 Req) WPL 311455 Contact Us For Availability
32
WPL 232150 WPL 232150 Contact Us For Availability
33
Gasket (1 Ea. For Key 32) WPL 311692 Contact Us For Availability
33
WPL 300987 WPL 300987 Contact Us For Availability
34
Switch-Gas Valve (5 Req) WPL 310253 Contact Us For Availability
34
WPL 102007 WPL 102007 Contact Us For Availability
35
Gas Valve (5 Req) WPL 324912 Contact Us For Availability
35
WPL 102015 WPL 102015 Contact Us For Availability
36
Griddle Burner WPL 325125 Contact Us For Availability
36
WPL 102202 WPL 102202 Contact Us For Availability
37
Tubing 3/16``-Oven Therm. To Oven Pilot WPL 322447 Contact Us For Availability
37
WPL 115533 WPL 115533 Contact Us For Availability
38
Loxit Nut 3/8-24 WPL 79673 Contact Us For Availability
38
WPL 295974 WPL 295974 Contact Us For Availability
39
Gasket WPL 318657 Contact Us For Availability
39
WPL 111257 WPL 111257 Contact Us For Availability
40
Manifold Pipe WPL 325137 Contact Us For Availability
40
WPL 293657 WPL 293657 Contact Us For Availability
40
WPL 293658 WPL 293658 Contact Us For Availability
41
Switch-Thermostat WPL 318432 Contact Us For Availability
41
WPL 68654 WPL 68654 Contact Us For Availability
42
Oven Thermostat WPL 318477 Contact Us For Availability
42
WPL 327109 WPL 327109 Contact Us For Availability
43
Ga WPL 318658 Contact Us For Availability
43
WPL 102199 WPL 102199 Contact Us For Availability
44
WPL 318478 WPL 318478 Contact Us For Availability
44
WPL 88462 WPL 88462 Contact Us For Availability
45
WPL 308312 WPL 308312 Contact Us For Availability
45
WPL 328514 WPL 328514 Contact Us For Availability
46
WPL 108788 WPL 108788 Contact Us For Availability
46
WPL 312908 WPL 312908 Contact Us For Availability
47
WPL 325126 WPL 325126 Contact Us For Availability
47
WPL 71206 WPL 71206 Contact Us For Availability
48
WPL 316365 WPL 316365 Contact Us For Availability
48
WPL 303904 WPL 303904 Contact Us For Availability
49
WPL 315405 WPL 315405 Contact Us For Availability
49
WPL 70275 WPL 70275 Contact Us For Availability
50
WPL 69006 WPL 69006 Contact Us For Availability
51
WPL 97819 WPL 97819 Contact Us For Availability
51
WPL 97820 WPL 97820 Contact Us For Availability
53
WPL 325072 WPL 325072 Contact Us For Availability
54
WPL 87579 WPL 87579 Contact Us For Availability
55
WPL 309872 WPL 309872 Contact Us For Availability
56
WPL 325065 WPL 325065 Contact Us For Availability
56
WPL 325066 WPL 325066 Contact Us For Availability
56
WPL 325067 WPL 325067 Contact Us For Availability
56
WPL 325068 WPL 325068 Contact Us For Availability
56
WPL 325069 WPL 325069 Contact Us For Availability
56
WPL 328500 WPL 328500 Contact Us For Availability
56
WPL 328501 WPL 328501 Contact Us For Availability
56
WPL 328502 WPL 328502 Contact Us For Availability
56
WPL 328503 WPL 328503 Contact Us For Availability
56
WPL 328504 WPL 328504 Contact Us For Availability
57
WPL 305064 WPL 305064 Contact Us For Availability
58
WPL 296124 WPL 296124 Contact Us For Availability
58
WPL 296125 WPL 296125 Contact Us For Availability
59
WPL 290171 WPL 290171 Contact Us For Availability
60
WPL 313071 WPL 313071 Contact Us For Availability
61
WPL 67017 WPL 67017 Contact Us For Availability
62
WPL 88463 WPL 88463 Contact Us For Availability
63
WPL 325197 WPL 325197 Contact Us For Availability
64
WPL 293659 WPL 293659 Contact Us For Availability
65
WPL 69459 WPL 69459 Contact Us For Availability
66
WPL 323451 WPL 323451 Contact Us For Availability
67
WPL 69457 WPL 69457 Contact Us For Availability
68
WPL 325142 WPL 325142 Contact Us For Availability
69
WPL 112938 WPL 112938 Contact Us For Availability
70
WPL 87936 WPL 87936 Contact Us For Availability
71
WPL 294564 WPL 294564 Contact Us For Availability
72
WPL 87820 WPL 87820 Contact Us For Availability
73
WPL 327300 WPL 327300 Contact Us For Availability
74
WPL 230980 WPL 230980 Contact Us For Availability
74
WPL 230981 WPL 230981 Contact Us For Availability
75
WPL 97696 WPL 97696 Contact Us For Availability
75
WPL 97697 WPL 97697 Contact Us For Availability
76
WPL 324047 WPL 324047 Contact Us For Availability
76
WPL 324048 WPL 324048 Contact Us For Availability
77
WPL 68629 WPL 68629 Contact Us For Availability
77
WPL 69925 WPL 69925 Contact Us For Availability
78
WPL 300767 WPL 300767 Contact Us For Availability
79
WPL 306148 WPL 306148 Contact Us For Availability
80
WPL 305751 WPL 305751 Contact Us For Availability
81
WPL 286683 WPL 286683 Contact Us For Availability
82
WPL 102376 WPL 102376 Contact Us For Availability
× ![]()
